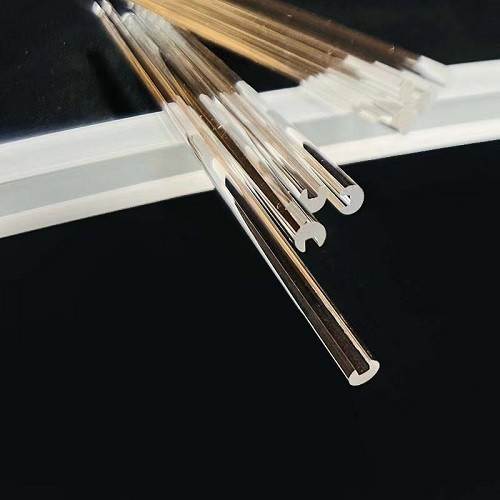

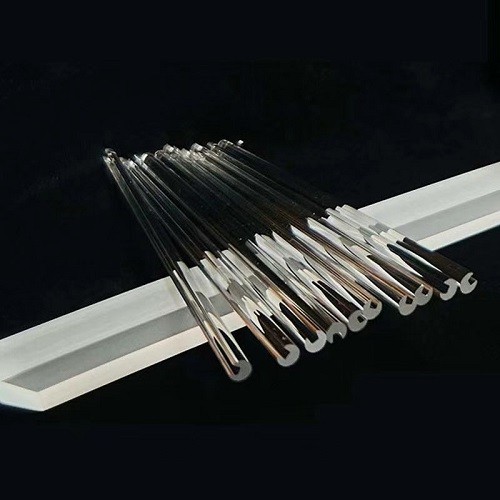

U Shaped Quartz Substrates For Fiber Collimator Coupler

U Shaped Quartz Substrates For Fiber Collimator Coupler

Category： Fiber Optics
Material：Quartz glass and Borosilicate glass
Size：Customizable
Density: 3.1g/cm3³
Surface Quality :Fine ground
INQUIRY EMAIL

Product Name: U-Shaped Quartz Substrates for Fiber Collimator Coupler

Material: High Purity Fused Quartz

Dimensions:
Outer Diameter (OD): φ1.0mm ~ φ6mm
Inner Diameter (ID): φ0.5mm ~ φ5.8mm
Height (H): 0.5mm ~ 4.5mm

Length (L): 2mm ~ 200mm

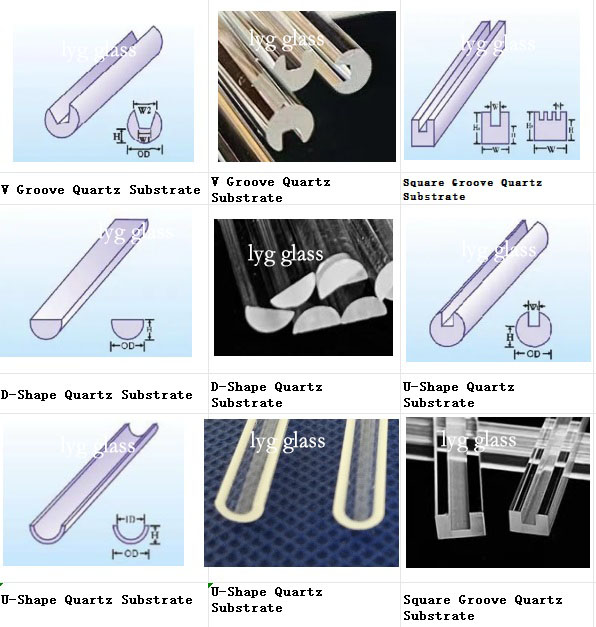

Shapes Available:
D-Shape Quartz Substrate
U-Shape Quartz Substrate

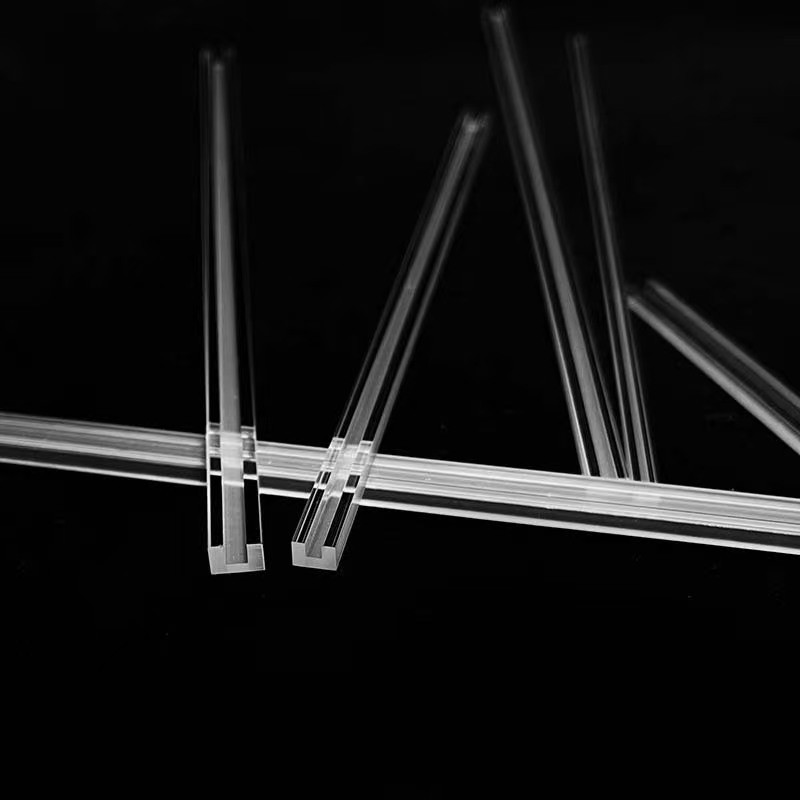

Square Groove Quartz Substrate
W-Groove Quartz Substrate

V-Groove Quartz Substrate

Main Purpose:
These substrates are designed primarily for use as fiber couplers and fusion splice sleeves, including ribbon sleeves.

Key Features:
Thermal Expansion Coefficient: The coefficient of thermal expansion is matched to that of fiber, ensuring compatibility and performance stability.

Material: Made from high purity fused quartz, offering excellent optical and thermal properties.

Applications:
Fiber Couplers
Fiber Splitters
AWG (Arrayed Waveguide Grating)
WDM (Wavelength Division Multiplexing)
Isolators
Active Devices
These quartz substrates are essential components for various fiber optic devices, ensuring high performance and reliability in telecommunications and other precision optical applications.
