Ceramic Reflector for Deka Motus AX

Category： Ceramic Reflector
Material: Alumina Ceramic
Size：Customizable
Type Of Ceramic:Glazed, Unglazed
Thermal expansion coefficient: 7.9×10-6/С（200～500℃） 9×10-6/С（200～1000℃）
INQUIRY EMAIL

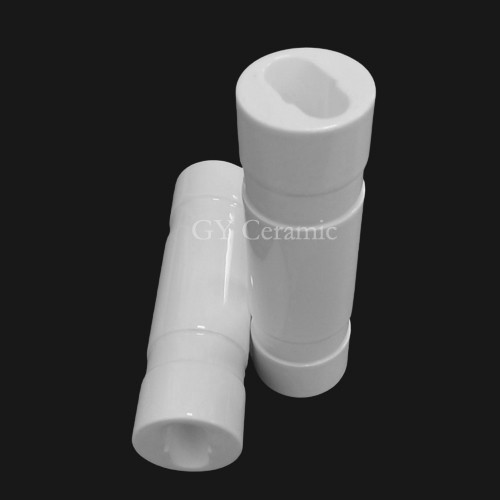

Ceramic Reflector for Deka Motus AX

Product Overview:

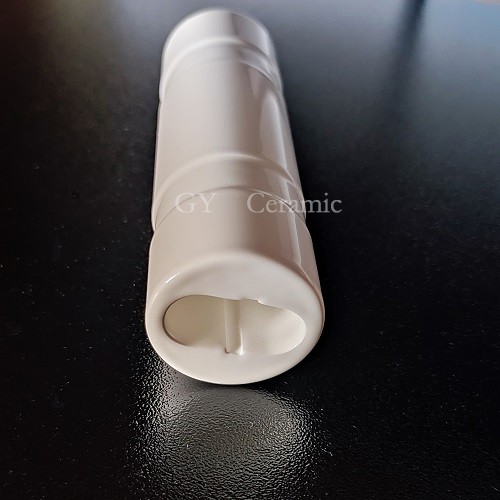

The Ceramic Reflector for Deka Motus AX is made from 99% pure alumina (Al₂O₃) ceramic, offering exceptional high-temperature resistance, corrosion resistance, and high reflectivity, making it ideal for use in YAG laser cavity applications. The reflector features a central groove designed to hold a cerium-doped quartz glass insert, which effectively filters UV radiation to ensure the purity and stability of the laser beam. The inner cavity and outer edges of the ceramic are coated with a high-reflectivity glaze, enhancing the overall reflectance and preventing the ingress of cooling fluids that could affect the refractive index, introduce impurities, or reduce reflectance efficiency.

Key Features:
High Purity Material: Made from 99% Al₂O₃ (alumina) ceramic, providing excellent high-temperature resistance and durability.
UV Filtering Functionality: The central groove allows for the insertion of cerium-doped quartz glass, effectively filtering out UV radiation.
High Reflectivity Coating: The inside cavity and outer edges are glazed with a high-reflective coating to enhance reflectance and optical performance.
Sealed Surface: The glaze seals the ceramic surface, preventing cooling fluid infiltration and protecting the reflector from contamination.

Optimized for YAG Laser: Designed specifically for use with the Deka Motus AX laser system, ensuring high optical performance and efficiency.

Technical Specifications:
Color: White
Bulk Density (Fired): 3.2 Mg/m³
Apparent Porosity: 20% (Nominal)
Flexural Strength (ASTM C1161, 3-point): 150 MPa
Thermal Expansion Coefficient:
200-500°C: 7.9 × 10⁻⁶ /°C

200-1000°C: 9.0 × 10⁻⁶ /°C

Applications:
YAG laser cavity reflectors
High-power laser systems
Laser cutting, welding, and engraving
High-performance laser reflection systems
