Introduction

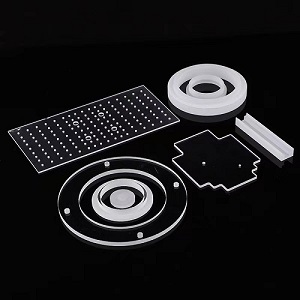

Quartz glass, with its exceptional optical properties and thermal stability, plays an increasingly important role in the laser industry. From laser cutting, welding, and medical lasers to beauty lasers, optical fiber communication, and semiconductor equipment, quartz glass has become a key material and component in many high-precision laser applications. As laser technology continues to evolve, the demand for quartz glass components—such as optical windows, quartz optical lenses, and quartz optical fibers—has increased significantly. This article will explore how quartz glass enhances the performance of laser equipment and drives innovation across multiple industries.

Why Choose Quartz Glass? Key Advantages in Laser Applications

Quartz glass has become the preferred material in laser devices mainly due to its several significant advantages:

High Optical Transparency

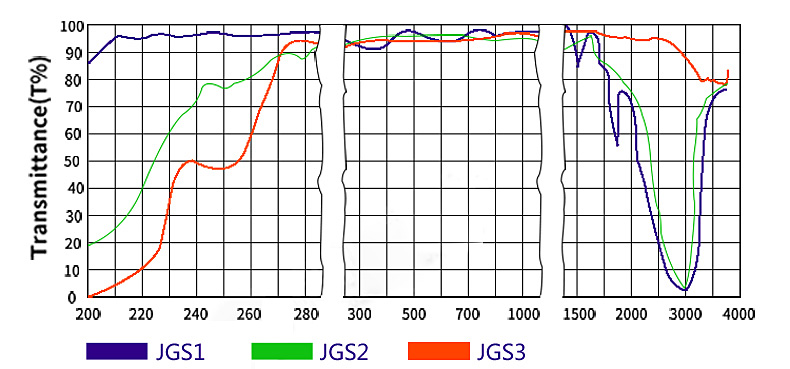

Quartz glass boasts outstanding optical transparency, ensuring efficient laser beam transmission and minimizing energy loss. This makes quartz glass ideal for applications that demand minimal optical distortion and high-efficiency laser beam transmission. Chinese-made quartz glass grades include JGS1, JGS2, and JGS3, and their transmission curves are as follows:

Excellent Thermal Stability

Due to its high melting point and low thermal expansion coefficient, quartz glass can withstand high-temperature environments, particularly the heat generated in high-power laser systems. This makes quartz glass an ideal material in laser equipment, maintaining stability under extreme temperatures without deformation or damage that could affect the device’s performance.

Softening Temperature: 1730°C

Annealing Temperature: 1150°C

Strain Temperature: 1050°C

Maximum Working Temperature (continuous): 1160°C

Maximum Working Temperature (short-term): 1300°C

Chemical Stability

Quartz glass exhibits excellent chemical stability and corrosion resistance, making it highly resistant to most chemicals. Apart from hydrofluoric acid and hot phosphoric acid, quartz glass can withstand various acids, aqua regia, neutral salts, sulfur, and carbon, both at room temperature and high temperatures. Its chemical stability is 150 times greater than that of nickel-chromium alloys and ceramics, making it one of the best materials for acid resistance. This makes quartz glass indispensable in laser welding, cutting, and other processes where harsh environments are common.

Scratch Resistance and Durability

Due to its high hardness, quartz glass has exceptional scratch resistance. In long-running laser devices, quartz glass effectively reduces surface wear, extending the lifespan of the laser equipment and lowering maintenance costs.

Applications of Quartz Glass in Laser Equipment

Quartz glass is widely used across various laser applications, each leveraging the unique advantages of quartz:

Laser Welding and Cutting

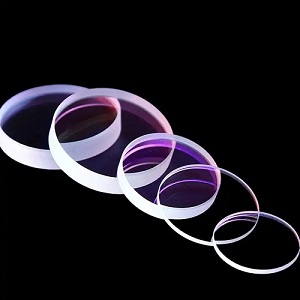

Quartz optical windows, also known as laser protection windows, are commonly used in laser welding equipment to protect optical components from weld splatter and high temperatures. Due to its high-temperature resistance and excellent light transmission, quartz glass is the ideal choice for high-precision laser cutting and welding applications. It is widely used in semiconductor wafer manufacturing, automotive, aerospace industries, and more.

Medical Laser Equipment

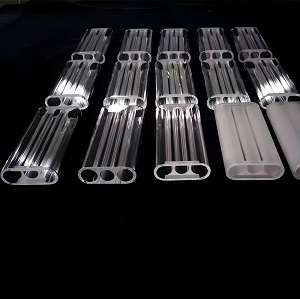

Medical lasers play a vital role in surgeries, skin treatments, and diagnostics. Quartz optical components, such as fibers and lenses, are essential in these applications as they efficiently transmit laser beams and ensure precise output. Additionally, cerium-doped quartz filters for ultraviolet light, quartz cavities, and other components are widely used in medical lasers for hair removal, skin resurfacing, and more. Quartz's biocompatibility and chemical stability make it the material of choice for medical laser equipment, ensuring both safety and efficiency.

Laser Marking and Engraving

Laser marking and engraving require precise focusing of the laser beam to produce durable marks. Quartz optical lenses and focusing windows, often coated with thin films, can effectively concentrate the laser beam onto the target surface, ensuring high-precision marking and engraving while reducing the failure rate of laser equipment.

Optical Fiber Communication

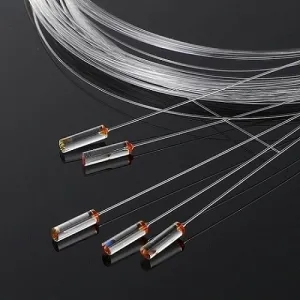

In optical fiber communication, quartz glass capillary tubes, capillary rods, groove rods, V-grooves, and more are extensively used in passive optical components, such as PLC splitters, fiber couplers, WDM multiplexers, fiber sensors, fiber array substrates, fiber connectors, and beam combiners. These components are integral to modern communication systems. Quartz’s high transparency to various wavelengths of light makes it an ideal material for long-distance laser signal transmission, ensuring efficient signal propagation and minimal attenuation. Additionally, quartz glass capillary tubes play a critical role in electronics, medical, and optical industries.

Innovation and Trends: The Future of Quartz Glass in Laser Technology

As the demand for laser systems evolves, quartz glass technology continues to innovate. The following trends are pushing the boundaries of quartz glass applications:

Customization for Specific Applications As laser technology becomes increasingly specialized, there is a growing demand for customized quartz optical components. We can now provide tailored solutions based on customer-specific requirements, such as ultra-thin optical windows designed for high-power laser systems or special coatings for increased durability. Small-batch orders are also available to meet the needs of academic institutions, research labs, and startups conducting research.

Advanced Surface Coatings Advancements in surface coating technology further enhance the performance of quartz glass in laser applications. Anti-reflective coatings, anti-scratch coatings, gold, silver, and aluminum coatings improve the optical properties and durability of quartz glass, enabling it to perform reliably in more demanding environments for extended periods.

Integration with Emerging Laser Technologies With the rise of fiber lasers, diode lasers, and ultrafast laser technologies, the role of quartz glass in laser applications has become more crucial. These emerging laser technologies require higher energy handling capabilities and more precise optical components, driving the demand for higher-performance quartz optical elements.

In conclusion, quartz glass is a key enabler in the continued advancement of laser technology, offering superior optical, thermal, chemical, and mechanical properties that are indispensable across a range of industries. Its versatility and adaptability will continue to play a pivotal role in shaping the future of laser systems and their applications.


Quartz glass is a vital foundational material in the laser industry, widely used in fields such as laser welding, cutting, medical applications, and optical fiber communication. Its exceptional optical transparency, thermal stability, chemical resistance, and scratch resistance make it indispensable in modern laser equipment. As laser technology continues to advance, quartz glass will play an even more significant role in enhancing laser equipment performance, extending its lifespan, and expanding the scope of laser applications. For companies in the laser technology sector, investing in high-quality quartz glass components will be key to maintaining competitiveness and ensuring optimal equipment performance.

Our company has over 20 years of experience in the quartz glass manufacturing industry, with a team of skilled engineers and advanced glass manufacturing equipment. We can customize and mass-produce high-precision quartz glass sheets, quartz glass tubes, quartz glass components, and more, using quartz glass, optical glass, borosilicate glass, sapphire glass, and other materials to meet customer requirements. We are committed to providing high-quality, qualified components that meet your needs. Please feel free to contact us for inquiries.
