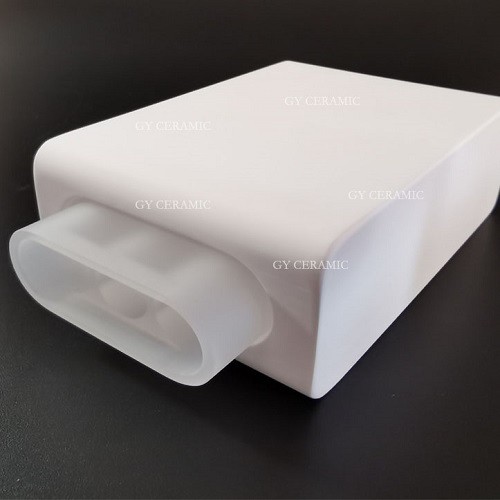

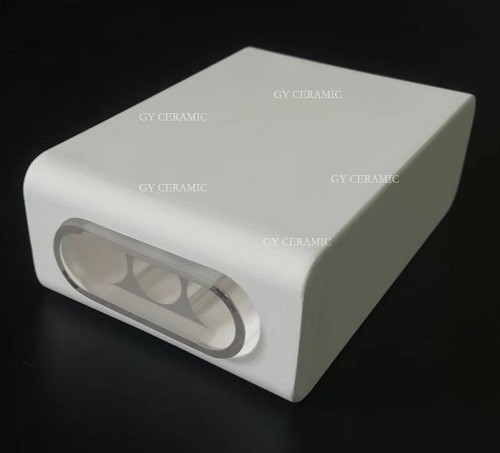

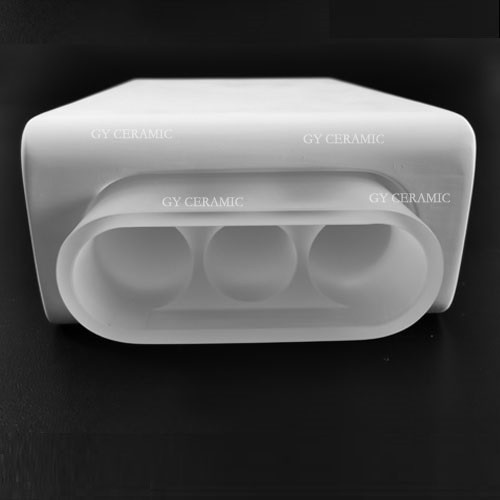

Alumina Ceramic Reflector for Candela GentleLase Laser Head

Product Name: Alumina Ceramic Reflector for Candela GentleLase Laser Head

Overview:
Introducing the Alumina Ceramic Reflector, expertly engineered for use in the Candela GentleLase laser head. This high-performance reflector is an essential component designed to ensure precise laser beam reflection within the laser cavity, optimizing the efficiency and stability of the laser system. Manufactured from top-quality alumina ceramic, this reflector provides exceptional thermal stability, durability, and high reflectivity—ideal for demanding laser applications.

Material:

• Type: Alumina Ceramic
• Origin: China
• Color: White
• Density: 3.1 g/cm³
• Porosity: 22%
• Flexural Strength: 170 MPa
• Thermal Expansion Coefficient:
  • 7.9 × 10⁻⁶ /°C (200–500°C)
  • 9 × 10⁻⁶ /°C (200–1000°C)

Main Features:

1. Dimensional Accuracy:

   • Height direction tolerance: ≤ 1.0 mm
   • Other dimensional tolerances: ≤ 0.5 mm

2. Superior Surface Quality:

   • Fully glazed surface for maximum reflectivity
   • Easy to clean, ensuring consistent performance throughout its lifecycle

3. High Reflectivity:

   • 97% reflectivity at wavelengths between 600–1000 nm
   • Reflectivity exceeding 95% across the wavelength range of 380–1100 nm

4. Strength & Durability:

   • Designed with an optimal balance of porosity and high flexural strength for enhanced mechanical performance

Applications:
This Alumina Ceramic Reflector is specifically designed for the Candela GentleLase Laser Head and can also be used in the following systems:

• Ceramic Reflector for Cutera Laser Head
• Ceramic Reflector for Cynosure Smartlipo
