Product Description

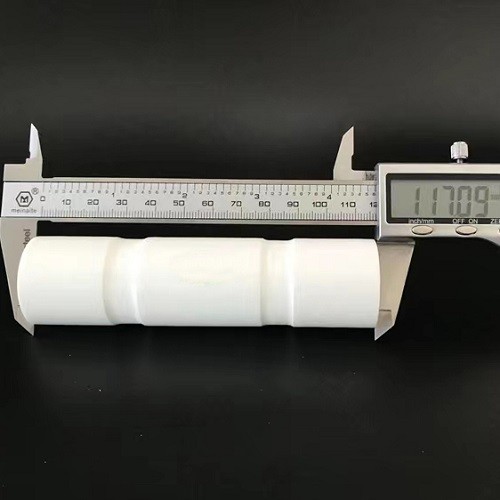

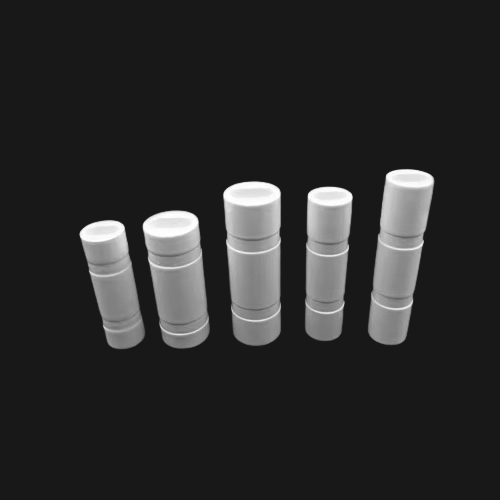

Al2o3 Alumina Ceramic Cavity for Nd:YAG laserCeramic reflector typical application is pumping chambers for Nd:YAG lasers — low to high power, single or multiple lamp designs. Pumping chamber reflectors of this material are virtually indestructible, and prove a highly cost effective alternative to metal coated types. A porous alumina ceramic of 99.7% Al2O3 content, used extensively for long-life laser reflectors. This material is sintered at high temperatures to achieve a controlled porosity. Ceramic reflectors also can use many other kinds of lasers, such as for Diode-pumped Solid-state Lasers.
Production Capabilities:
Standard sizes are in stock and available for immediate shipment, reducing waiting times.
Components up to 250mm long and 80mm wide/diameter manufactured as standard.
Larger components manufactured to development contracts.
One-piece or split-cavity designs.
Prototype, batch and volume production.
Specification:
| Material: | Alumina Ceramic |
| Origin： | China |
| Color: | White |
| Density: | 3.1g/cm3³ |
| Porosity: 22% | 22% |
| Flexural strength: | 170MPa |
| Thermal expansion coefficient: | 7.9×10-6/С（200～500℃） |
| 9×10-6/С（200～1000℃） | |
| Shape | Round |
| Part No. | BAB330 (TCT117)，BAB192 (TCT97, BAB349) |
| Advantage | Long life time |
| Reflectivity | 97.8% reflectance efficiency at 600-1000nm |
