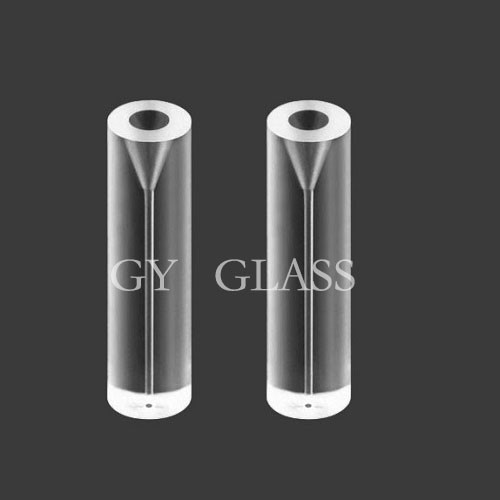

Glass Ferrule For a Fiber Holding

Category： Borosilicate Glass
Material：Quartz glass and Borosilicate glass
Size：Customizable
Tolerance：±0.001 to ±0.5mm
Customized Glass Ferrules and Fiber Glass Capillaries
INQUIRY EMAIL

Glass Ferrule For a Fiber Holding

Core Options:
Single-Core
Dual-Core
Multi-Core
Entrance Hole (Lead): Customizable

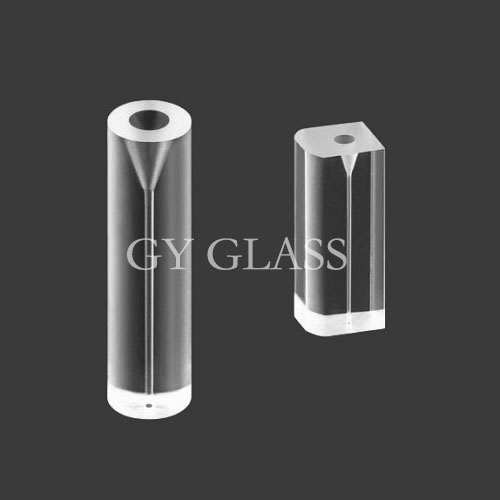

Shape of Fiber Glass Capillary

Round Glass Fiber Ferrule

Rectangular Glass Fiber Ferrule

Square Glass Fiber Ferrule

Single Core Fiber Capillary
Name	Size	Tolerance
Out diameter	0.8 to 5.5mm	±0.05
Inner diameter	0.120-0.3mm	±0.002
Length	3 to 20mm	±0.2
Length With	0.75mm	±0.2
Lead Depth	1.5mm	±0.5
Application	AWG,PLC

Rectangular Fiber Capillary
Name	Size	Tolerance
Length	1.25/1.4/1.45/2.0/2.5	±0.05
Inner diameter	0.127	±0.002
Length	3-20mm	±0.2
Length With	0.6mm	±0.2
Lead Depth	1.0mm	±0.5
Application	AWG,PLC

Square Fiber Capillary
Name	Size	Tolerance
OD	1.5*1.5	±0.05
	1.25*1.25
	2.5*2.5
ID	0.127-2.2	+0.002/-0.001
Length	2-15mm	±0.2
Length With	3-30mm
Lead Depth	1.0±0.5mm
Application	AWG,PLC

We can customize the size and shape according to the customer's required drawings.

Applications:
Our glass ferrules and fiber glass capillaries are ideal for a variety of applications in scientific research, medical devices, industrial processes, and more.
