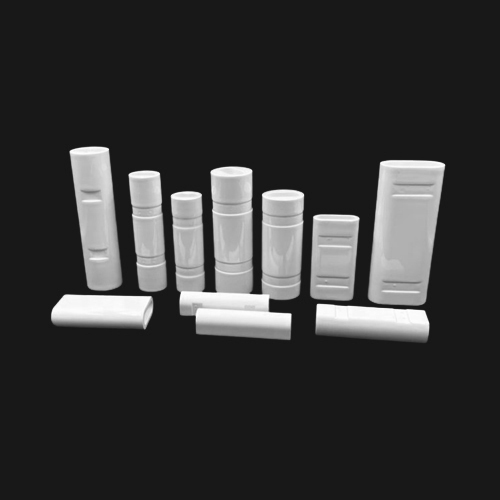

Full Glazed 99% Alumina Cavity Reflector for Duetto MT EVO Quanta System Machine
High-Performance Diffusive Ceramic Reflectors for Nd Lasers
This ceramic reflector will fit these Quanta laser machines including：
DuettoMT Evo
DuettoMT
Domino EVO
Domino
Light series/EVO
Overview:
Our Full Glazed 99% Alumina Cavity Reflector is a cutting-edge solution designed for Duetto MT EVO Quanta System Machines. Crafted from a porous alumina ceramic with a 99.7% Al₂O₃ content, this reflector is ideal for Nd
lasers, providing unmatched durability and cost-efficiency compared to traditional metal-coated reflectors. Perfect for a variety of laser applications, including Diode-pumped Solid-state Lasers.
Key Features:
Superior Reflectivity: Achieves up to 98% reflectivity at wavelengths of 600-1000nm and over 96% reflectivity in the 400-1200nm spectrum.
Unmatched Durability: Sintered at high temperatures for controlled porosity and strength, making these reflectors virtually indestructible.
Versatile Applications: Suitable for low to high power, single or multiple lamp designs in Nd
lasers, and other laser types.
Fully Glazed Surface: Ensures maximum reflectivity and easy cleaning, significantly enhancing the reflector's efficiency and lifespan.
Precision Manufacturing: Rapid delivery of stock materials with precision manufacturing services available for custom requirements.
Material and Physical Properties:
Material: Ceramic
Type of Ceramic: Glazed, Unglazed
Component Types: Reflectors, Isolators, Insulators
Color: White
Density: 3.1 Mg/m³
Porosity: 22%
Flexural Strength: 170 MPa
Working Temperature: Up to 1000°C
Thermal Expansion Coefficient:
7.9×10⁻⁶/°C (200-500°C)
9×10⁻⁶/°C (200-1000°C)
Applications:
These ceramic reflectors are ideally used in:
Laser welding machines
Laser cutting machines
Laser marking systems
Medical laser equipment
Specially designed for pumping chambers in Nd
lasers, our reflectors are suitable for various high-energy laser systems.
Why Choose Our Ceramic Reflectors?
High Reflectivity: Offers superior performance with high reflectivity across visible and infrared wavelengths.
Exceptional Durability: Provides a highly durable and cost-effective alternative to metal-coated reflectors.
Custom Solutions: Tailored ceramic reflectors to meet your specific needs, ensuring optimal performance for your laser applications.
Contact Us:
For rapid prototyping, precision ceramic components, or exceptional material performance, reach out to us today. Our expert team is ready to provide high-quality ceramic reflectors tailored to your high-energy laser system requirements.
Optimize Your Laser Systems with Our Advanced Ceramic Reflectors
Enhance the efficiency and longevity of your laser equipment with our Full Glazed 99% Alumina Cavity Reflectors. Place your order now and experience superior performance and durability.
Upgrade your laser systems with the best ceramic reflectors available. Contact us now for more information or to place an order. Our team is here to assist you with all your high-energy laser system needs.
