UV-Filtering Flow Tube for Laser Pump Chambers

Category： Flow Tubes and Flow plates
Material：Ce Quartz glass
Size：Customizable
Density: 3.1g/cm3³
Surface Quality :Polished
INQUIRY EMAIL

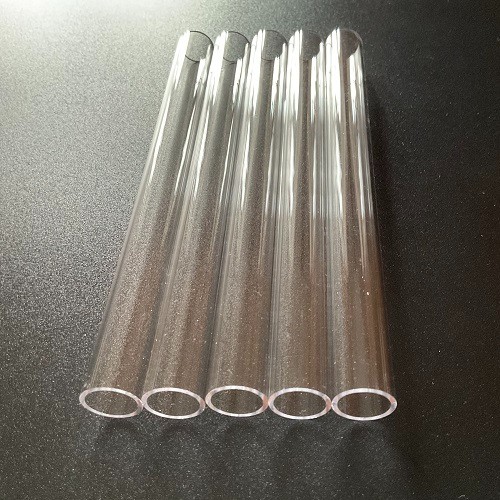

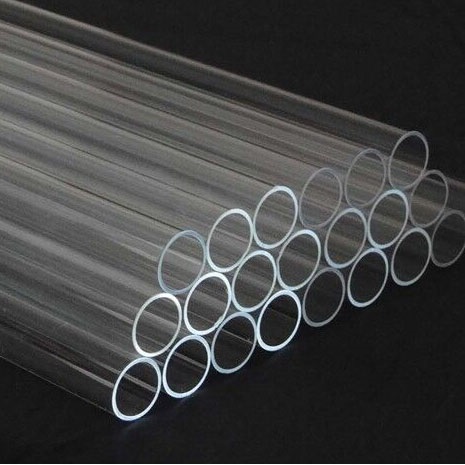

UV-Filtering Flow Tube for Laser Pump Chambers

Product Description:

Our UV-filtering flow tubes are precision-engineered from high-quality quartz materials, designed specifically for filtering UV light in the wavelength range of 190 nm to 330 nm. These tubes are essential components in various applications, including environmental conservation lighting sources and solid-state lasers, with particular focus on their use in laser pump chambers.

Specification of UV-Filtering Flow Tube

Out diameter(mm) (Tolerance±0.2mm)	Wall Thickness	Inner diameter(mm)	Length 5mm to1000mm
8	0.8-1.0	6.0-6.4	On Request
10	0.9-1.1	7.8-8.2	On Request
12	1.0-1.2	9.6-10.0	On Request
14	1.0-1.2	11.6-12.0	On Request
16	1.0-1.2	13.6-14.0	On Request
18	1.0-1.2	15.6-16.0	On Request
20	1.4-1.6	17.2-16.8	On Request

Key Features:
Material: Constructed from high-grade quartz to ensure optimal durability and clarity.
UV Filtering Range: Effectively filters UV light in the 190 nm to 330 nm spectrum, providing superior protection for sensitive optical components.
Cerium Doping: Infused with trace amounts of cerium (Ce), which imparts a light blue or colorless appearance to the tube cross-sections. The Ce-doping enhances the tube's optical properties, improving UV filtering efficiency.
Specialized Optical Properties: The Ce-doped quartz material exhibits unique optical and physical characteristics, ensuring higher UV absorption and protection against harmful UV radiation. This enhances the performance and longevity of lasers and other UV-sensitive equipment.

Applications: Primarily used in laser pump chambers to protect laser components from UV damage, as well as in environmental conservation lighting sources to reduce harmful UV exposure.

Benefits:
Enhanced UV Filtering Efficiency: The incorporation of cerium significantly improves the tube's ability to absorb and filter UV light, ensuring better protection for both the equipment and the environment.
High Durability: Quartz material offers excellent resistance to thermal and mechanical stress, ensuring the tubes remain effective even under high-intensity conditions.

Versatile Use: Ideal for use in both solid-state lasers and environmental lighting systems, offering a broad range of applications in the scientific, industrial, and environmental sectors.

Applications:
Laser Pump Chambers: Safeguard the laser components from UV radiation, enhancing laser efficiency and lifespan.

Environmental Lighting: Perfect for use in UV-sensitive areas requiring energy-efficient and UV-protected lighting solutions.

With its unique composition and superior UV filtering capabilities, our UV-filtering flow tubes are indispensable for advanced laser technology and environmental conservation efforts, ensuring maximum protection and performance.
