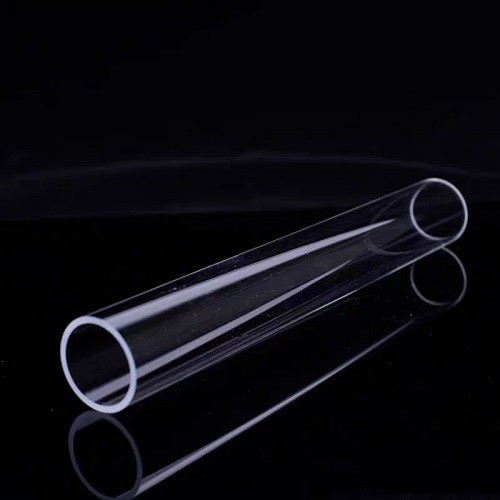

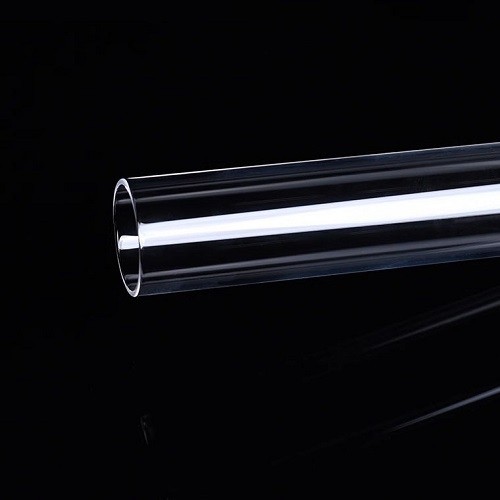

Synthetic Silica Flow Tubes for Lamp and Rod in Lasers
Overview:
Synthetic Silica Flow Tubes are critical components used in lasers to efficiently cool the lamp and rod during operation. These flow tubes are placed around the lamp or rod, allowing water to flow through and dissipate heat. This ensures that both the lamp and rod are protected from overheating, maintaining the system's efficiency and extending the lifespan of the components.
Using the correct flow tube size is crucial to achieve the proper water flow rate for optimal cooling. If the flow tube is not sized correctly, the lamp may overheat, resulting in a significant reduction in its lifespan.
Material Performance and Advantages:
We provide flow tubes made from various high-quality materials, each offering specific advantages for different laser applications:
Clear Fused Quartz (CFQ)
Known for its high purity and excellent optical transmission, CFQ is a robust material capable of withstanding high temperatures and intense laser radiation.
Cerium Doped Quartz (CDQ)
This material offers superior UV blocking properties while maintaining high transmission in the visible and near-infrared regions, ideal for applications where UV protection is crucial.
Silver Coated Quartz Flow Tubes
Silver coating enhances the tube's reflective properties, improving cooling efficiency by redirecting more energy into the water cooling system.
Corning Fused Silica HPFS 7979/7980
These premium grades of fused silica provide exceptional resistance to high temperatures and offer extremely low thermal expansion, making them ideal for high-performance laser systems.
Schott Borofloat 33
A high-quality borosilicate glass with excellent chemical durability and thermal resistance, well-suited for demanding environments.
Schott Samarium Doped Glass (S7005 5%Sm, S7010 10%Sm)
Samarium doping provides excellent shielding from UV radiation, making it highly effective in high-energy laser applications.
Customization Options:
We offer fully customizable flow tubes to meet specific requirements, including:
Outer Diameter: Customizable to fit a wide range of lamp and rod sizes.
Shape: Flow tubes can be tailored in various shapes to meet unique system designs and configurations.
OD
|
4 mm to 00mm
|
ID
|
0.2mm to18mm
|
|
Length
|
5mm to 200mm
|
|
Tolerance
|
±0.02 to ±0.2
|
Applications:
Nd YAG Lasers
Industrial Laser Systems
Medical Laser Devices
Scientific Research Equipment
Our synthetic silica flow tubes are highly durable, offering excellent thermal stability and long-lasting performance in even the most demanding laser applications.
Custom Orders:
We can manufacture flow tubes based on your specific size and design requirements. Please send us your detailed drawings, and we will provide a solution that perfectly fits your system's needs. We are able to offer all types and sizes of flow tubes.
For inquiries and customization, feel free to contact us with your specifications.
