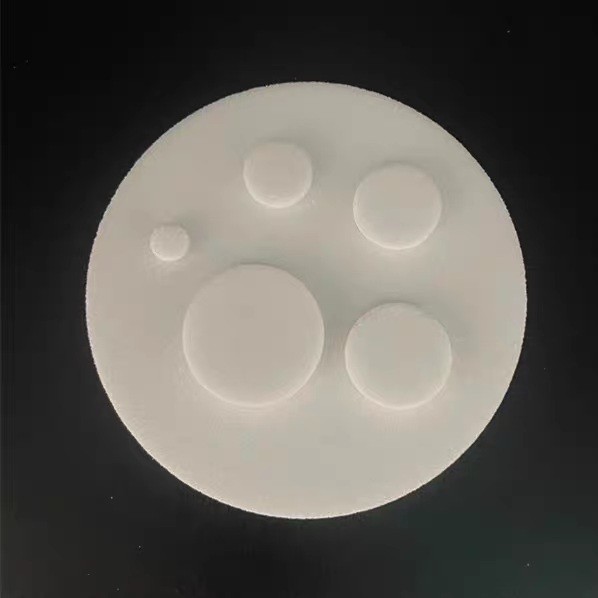

Quartz Sintered Glass Discs

Category： Quartz Apparatus
Material:Quartz glass,Fused silica
99.99% silica fused quartz
Dimension Tolerance:±0.5mm
Work temperature 1000 degree
INQUIRY EMAIL

Product Details: Quartz Sintered Glass Discs

Overview:

Quartz Sintered Glass Discs are high-performance filtration media made from over 99% pure quartz. They are produced through a specialized sintering process, enhancing structural integrity and thermal resistance.

Specifications

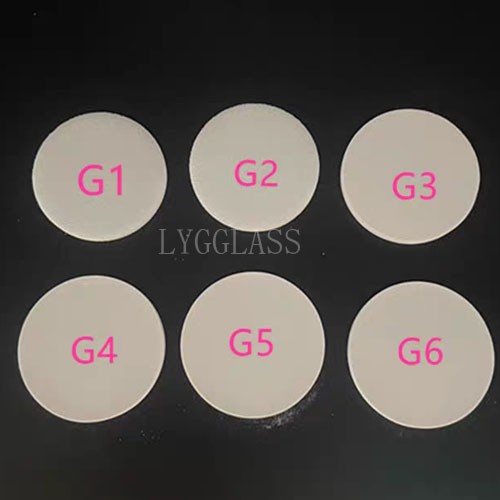

ITEMS	Pore size (um)	Application
G1	50-70	Filter out large precipitates and gel-like sediments.
G2	3-50	Filter out large precipitates and for gas washing.
G3	16-30	Filter out fine precipitates and for mercury filtration.
G4	4-7	Filter out fine or ultra-fine precipitates in liquids.
G5	2-4	Filter out ultra-fine sediment and larger bacteria.
G6	<2	Filter out Escherichia coli and Staphylococcus.

Key Features:
High Purity: Minimal contamination for sensitive applications.
Chemical Stability: Resistant to acids and alkalis.
High-Temperature Resistance: Suitable for extreme heat environments.

Mechanical Strength: Durable and robust for demanding conditions.

Applications:
Water Treatment: Removes impurities and enhances water quality.
Beverage Industry: Filters juices, wines, and other beverages.
Food Processing: Maintains hygiene and safety in food production.
Pharmaceuticals: Ensures purity in liquid filtration.

Laboratory Use: High-purity filtration for research applications.

Specifications:
Diameter Options: Various sizes available.
Thickness: Customizable for filtration efficiency.
Shape: Round discs for easy integration.

Conclusion: Quartz Sintered Glass Discs are essential for effective filtration across multiple industries, ensuring reliability and efficiency. For inquiries or orders, please contact us!
