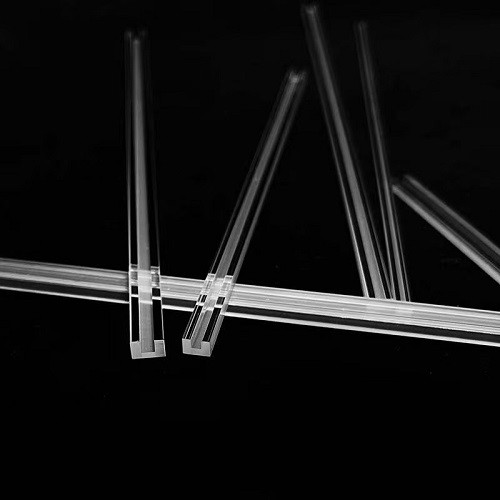

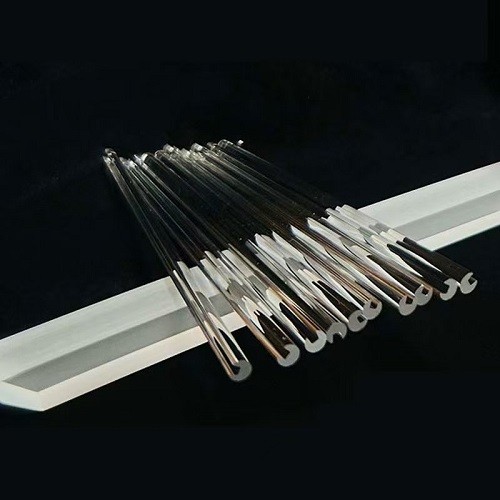

Quartz Glass Substrate for Fiber Coupler and WDM Manufacturing
Quartz glass substrates are commonly used in the manufacturing of fiber couplers. Fiber couplers are devices that enable the efficient transfer of light signals between multiple optical fibers. The quartz glass substrate plays a critical role in the construction and functionality of fiber couplers.
Here's how quartz glass substrates are used in fiber coupler manufacturing:
Fabrication of waveguides: Fiber couplers rely on waveguides to guide and manipulate light signals. The quartz glass substrate provides a stable and optically transparent foundation for the fabrication of these waveguides. Various techniques, such as lithography or laser ablation, are used to create the desired waveguide structures on the substrate surface.
Coupling region: The coupling region is where the optical fibers are aligned and brought into close proximity to facilitate efficient light transfer. Quartz glass substrates are often used as the coupling region due to their excellent transparency and low optical loss properties. The precise design and dimensions of the coupling region are crucial to achieve optimal coupling efficiency.
Deposition of thin-film coatings: Fiber couplers may require thin-film coatings to enhance their optical performance. These coatings can be deposited onto the quartz glass substrate using techniques like physical vapor deposition (PVD) or chemical vapor deposition (CVD). The coatings may include materials such as dielectric films, metal films, or anti-reflective coatings, depending on the specific requirements of the coupler.
Integration with fiber alignment structures: Quartz glass substrates can also be used to integrate fiber alignment structures or positioning features. These structures aid in aligning the optical fibers precisely with the waveguides, ensuring efficient light coupling. Techniques like lithography or microfabrication can be employed to create these alignment structures on the substrate surface.
By using quartz glass substrates in fiber coupler manufacturing, the resulting devices can exhibit low insertion loss, high coupling efficiency, and excellent optical performance. The substrate's properties, including transparency, low optical loss, and mechanical stability, contribute to the overall performance and reliability of the fiber coupler.
