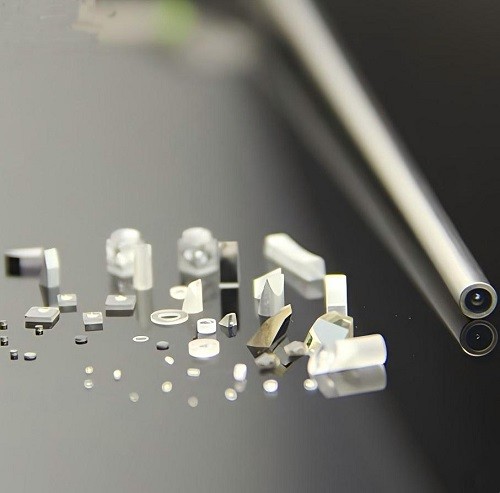

Precision Micro Glass Prism for Medical Endoscope

Category： Laser Optics
Material:Fused silica (UVFS),NBK7 glass,H-K9 glass,Fused quartz,Optical glass,Sapphire glass,
Size：Customizable
Tolerance：±0.001 to ±0.5mm
Surface Quality :Fine ground or polished
INQUIRY EMAIL

Precision Micro Glass Prism for Medical Endoscope
Our Precision Micro Glass Prism is a vital component for high-performance medical endoscopes, designed to deliver accurate light reflection and refraction for clear, sharp imaging in minimally invasive surgeries. This prism is crafted from high-quality optical glass, offering excellent transparency, durability, and precision. Its compact size makes it ideal for integration into the confined spaces of medical endoscopic systems.

The micro prism efficiently redirects light, enabling surgeons to view difficult-to-reach areas of the body with enhanced clarity. Whether it's for diagnosis or surgical procedures, the precision of the micro prism helps ensure the highest level of optical performance.

Specification：

	Commercial	Precision	High Precision
Material
Dimensions	0.2 – 200mm	2 – 150mm	2 – 150mm
Dimensional Tolerance	±0.25mm	±0.1mm	±0.05mm
Irregularity	1.0λ	0.5λ	0.05λ
Angle Accuracy	±3 arcmin	±30 arcsec	±1 arcsec
Pyramidal Accuracy (for corner cuber)	±3 arcmin	±1 arcmin	±5 arcsec
Bevel (Face Width @ 45°)	±0.2mm	±0.1mm	±0.05mm
Surface Quality	60-40	40-20	10/5

Key Features:
High Precision: Manufactured with tight tolerances for accurate light manipulation.
Durable Optical Glass: Resistant to scratches and environmental factors, ensuring long-lasting performance.
Compact Size: Perfectly suited for the miniature designs of modern medical endoscopes.
Customizable Design: Available in various shapes and coatings tailored to meet specific endoscopic requirements.

This micro glass prism is an essential tool for medical professionals seeking reliable, high-resolution imaging in endoscopic procedures. Reach out to us for custom solutions tailored to your project’s needs.
