Precision Glass Ferrules and Alignment Sleeves for the Fiber Optic

Category： Borosilicate Glass
INQUIRY EMAIL

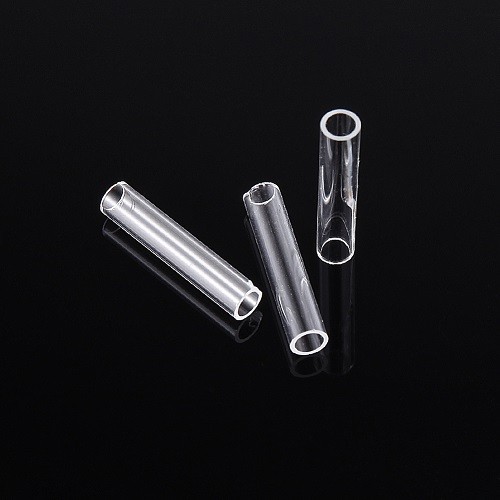

Precision Glass Ferrules and Alignment Sleeves for the Fiber Optic

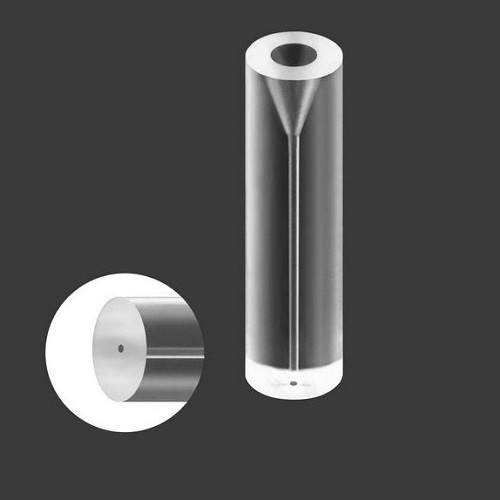

Single-core fiber capillary

Material:

Made from high-quality borosilicate glass

Specification

Outer Diameter(mm)/length	0.99 to 10.0mm	Tolerance ±0.005	Customization is acceptable
Inner Diameter(mm)	0.127 to 3mm	Tolerance ±0.002	Customization is acceptable
Length(mm)	6.5/7.0	Tolerance ±0.2	Customization is acceptable
Lead width(mm)	0.75
Lead depth(mm)	1.5
Material	Borosilicate glass

Applications: Borosilicate Glass 3.3
Borosilicate glass 3.3 is widely used across various fields including chemical industry, aerospace, military, household, and healthcare.
1.Household Appliances: Used in oven glass panels, microwave trays, and stove panels.
2.Environmental and Chemical Engineering: Applied as resistant liners, chemical reactors, and safety viewing windows.
3.Lighting: Used as protective glass for spotlights and high-power floodlights.
4.Solar Power Generation: Utilized as substrates for solar cells.
5.Precision Instruments: Employed in optical filters.
6.Semiconductor Technology: Used in wafers and display glass.
7.Medical Technology and Bioengineering
8.Safety and Protection: Used in bulletproof glass.
