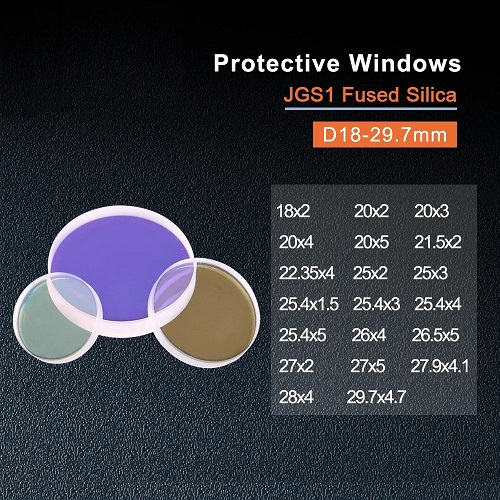

Laser Protective Windows For Fiber Laser Cutting Machine Head
Product Description
| Material | High temperature resistant quartz |
| Coating | Double-sided AR coating, |
| Wavelength | 755nm,1064nm |
| Diameter Tolerance | ±0.05mm |
| Thickness Tolerance | ±0.1 |
| Transmittance | 99.99% |
| Clear aperture | >85%,>90% |
| Damage threshold | >20J/CM2 |
| Surface quality | 60-40, 40-20, or better |
| Surface accuracy | λ/2, λ/4 or better |
| Coating | AR/AR@1064nm |
Advantage
1:Based on imported quartz crystal material, with high-quality optical, thermal and mechanical properties
2:High temperature resistance and strong light transmission, and it has a high degree of compatibility with the machine.
3:Not easy to crack
4:Fast cutting
5:Double-sided coated with a high-damage permeable film with high light transmittance greatly reduces the loss caused by laser reflection
6:Excellent substrate is selected and processed by slicing, polishing and polishing processes, which is laser-resistant. Strong performance.
7:Adopting high standard lens edge technology, 0.5mm45° protection full angle, safe and not hurting hands
Laser Cleaning Machine,
Product photos
