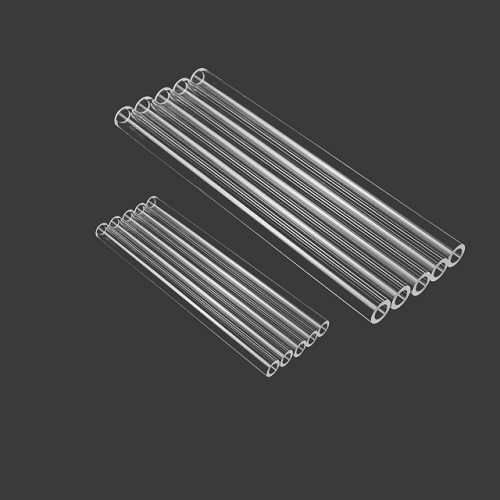

High-precision micro glass capillary tubes are small-sized cylindrical tubes made from glass with extremely precise dimensions and tolerances. These capillary tubes are designed for various applications that require precise fluid handling or precise measurement of liquids or gases at a microscale level. Here are some details about these products:
Material: These capillary tubes are made from high-quality glass materials such as borosilicate glass or quartz glass. Borosilicate glass offers excellent chemical resistance and thermal stability, while quartz glass provides exceptional optical clarity and high-temperature resistance.
Specification
|
Material: Glass
|
Borosilicate / Quartz / Soda Lime, etc.
|
|
Outer Diameter (OD):
|
0.1-10mm
|
|
Inner Diameter (ID):
|
0.1 to 8mm
|
|
Length:
|
2mm to300mm
|
|
Tolerance: (varies per product version)
|
0.001 to 0.005
|
Applications: These capillary tubes find applications in various fields, including analytical chemistry, microfluidics, biomedical research, pharmaceuticals, and diagnostics. They are used for tasks such as precise sample injection, microreactors, capillary electrophoresis, chromatography, and microscale fluidic experiments.
Advantage
Precision-engineered with high-quality glass material for reliable performance
Uniform internal and external dimensions for consistent performance
Available in a range of internal and external diameters
High chemical resistance
Excellent optical clarity
