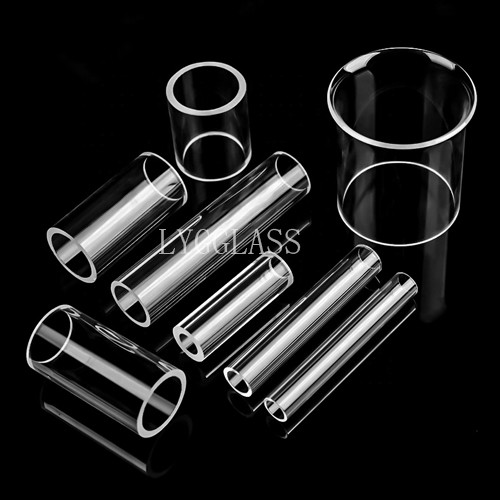

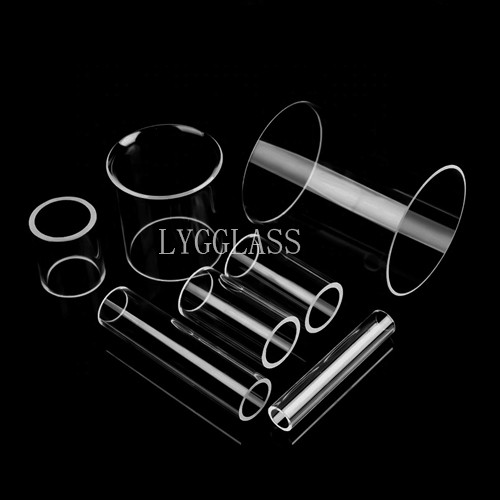

High Temperature Resistance Fused Quartz Sleeve for Ceramic Sintering Furnaces

Category： Quartz Tubing and Rod
Material:Quartz glass
Size:Custom
Colour:Polishing or grind
Work temperature 1000 degree
INQUIRY EMAIL

High Temperature Resistance Fused Quartz Sleeve for Ceramic Sintering Furnaces

Due to the excellent properties of quartz glass, such as high purity, high temperature resistance, and low thermal expansion, it is widely used in the production of the electronics industry.

Material
Far Ultraviolet quartz glass (JGS1)UV Grade
Ultraviolet quartz glass (JGS2) Optical grade
Infrared optical quartz glass ( JGS3)

Quartz glass Property

Density	2.203g/cm³
Compression Strength	>1.0*109Pa(N/m2)
Coefficient of Thermal Expansion	5.4*10-7cm/cm°C
Thermal Conductivity	LOW
Specific Heat	640J/kg°C
Softening point	1680℃
Annealing point	1210℃
Long-term Use Temperature	1100℃
