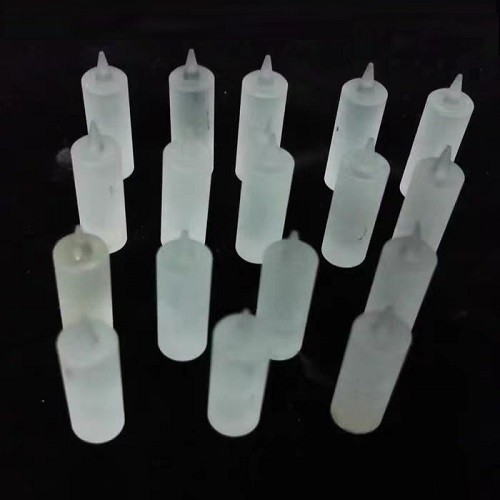

Fiber end cap For Laser
Fiber End caps are optical components designed for the end-face processing of fiber laser and fiber amplifiers with high average power at the interface of glass to air. The power could be so intense at the junction of fiber and air due to the minor cross-sectional area of the fiber, that strong heating and scorching could still devastate the fiber optic. Fiber end caps extend the cross-sectional area at the end faces of the fibers and therefore help to enhance the output power limit of fiber laser, reducing the power densities at the terminals within endurable bounds without causing damage using beam expansion so that the fiber component will not be injured.
Materials:
Quartz, Fused Silica, Corning 7980 glasses, Corning® C7979,Schott glasses,Heraeus glasses,, Suprasil® 300 or other custom glass materials .
Specifications
OD
2-10MM
Length
2-80mm
Coating
Uncoated 1064nm or Custom
Clear Aperture
>80%
Surface Flatness(@633nm)
<λ/10
Surface Quality
S/D 10/5
Advantage
Slight beam distortion and low echo-reflection
Apilication:
End caps can be used for medium and high power laser (amplifier) outputs, it can be integrated into fiber amplifier, fiber lasers and laser processing equipments.
High Damage Threshold ideal for high power fiber laser
Various Materials: Quartz, Fused Silica, or other custom glass materials
A stem or a tapered lead-in section for ease of splicing
AR coatings furnished
