.Durable Sapphire Wave Guide Light Guide Block for IPL Machines
- Category：
Sapphire Glass
- Material：Sapphire
- Size：Customizable
- Tolerance：±0.001 to ±0.5mm
- Surface Quality :Polished
-
-

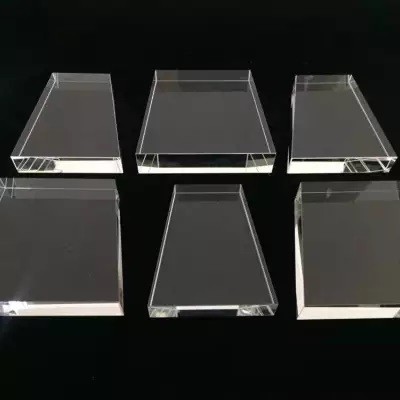

Durable Sapphire Wave Guide Light Guide Block for IPL Machines
Product Overview:
Introducing our state-of-the-art Durable Sapphire Wave Guide Light Guide Block, specifically engineered for use in IPL (Intense Pulsed Light) machines. This trapezoidal crystal light guide block is designed to enhance the performance of IPL devices, particularly in photon hair removal treatments. With exceptional optical properties, it effectively controls the epidermal temperature within a safe range, ensuring uniform heating of the underlying dermal layers while protecting the surrounding skin tissue from burns.
Key Features:
High Clarity and Gloss: Our sapphire light guide block features a high gloss finish and exceptional clarity, ensuring optimal light transmission for effective treatments.
Bubble-Free Construction: Manufactured with meticulous attention to detail, our blocks are entirely bubble-free, enhancing optical performance and durability.
High-Temperature Resistance: Designed to withstand high temperatures, making it suitable for intensive use in aesthetic applications.
Corrosion Resistance: The sapphire material is inherently resistant to corrosion, ensuring longevity and reliability in various environmental conditions.
High Hardness: The high hardness of sapphire provides durability against scratches and wear, maintaining performance over time.
Excellent Light Transmission: With superior light transmittance, our light guide block ensures that more therapeutic light reaches the skin, maximizing treatment efficacy.
Working Principle:
IPL devices generate strong pulsed light with a wavelength range of 400-1200nm. Our sapphire light guide block features a coated end face that filters out wavelengths below 575nm, allowing only 600nm to 1200nm light to pass through. The transmitted light undergoes total internal reflection around the sides of the light guide block and exits through the opposite end, delivering uniform illumination to the skin surface. This mechanism harnesses both photothermal and photochemical effects to achieve remarkable cosmetic results.
Applications:
Photon Hair Removal: Effectively targets hair follicles for long-lasting results while maintaining skin safety.
Skin Rejuvenation: Promotes skin health by delivering controlled light energy that stimulates collagen production and improves skin texture.
