Customized UV fused quartz cuvettes with Long tube and long neck

Customized UV fused quartz cuvettes with Long tube and long neck

Category： Cuvettes and flow cells
Fused quartz，UV Quartz Glass，IR Quartz Glass
Size：Customizable
Capacity（ml）:3.5ml
Surface Quality :Fine ground or polished
INQUIRY EMAIL

Applications:

Our quartz cuvettes are suitable for a wide range of spectroscopy and fluorescence analysis applications, including:

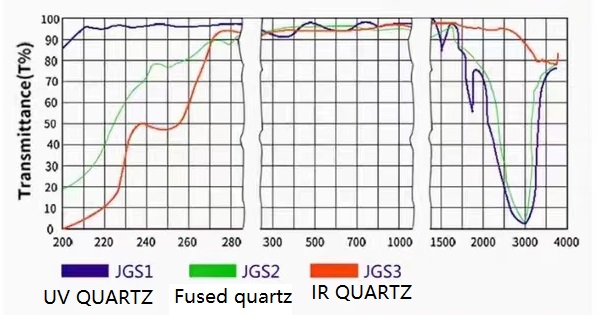

Wavelength Range: 190nm to 2500nm
Instruments: Laboratory Infrared Spectroscopy Instruments, UV-Vis spectrometers (spectrophotometers)
Research: Ideal for UV-VIS-NIR fluorescence and absorption spectroscopy research

Specifacation:

Material	Fused quartz，UV Quartz Glass，IR Quartz Glass
Boundary dimension	12.5 × 12.5 × 45 mm (0.49× 0.49 × 1.8 inch)
Polished Window	Two sides polished or Four sides polished
Capacity（ml）	3.5ml，1.7ml
Path Length (mm)	10mm，5mm，1mm
Bottom	Flat or Round
Pcs/Box	2pcs ，4pcs
Cover	Non-Sealing PTFE Cover
Wavelength	190nm~2500nm.

According to different production processes, it is divided into the following categories. Please choose the appropriate type according to your use environment and temperature.

	Type
	A	B	C	D
Transmit in visible wavelength	√	√	√	√
Transmit in UV wavelength	√	√	√	√
Transmittance over 80%	√	√	√	√
Resistance to acid and alkali	×	√	√	√
Resistant to organic solvents	×	√	√	√
emperature resistance 600℃	×	√	√	√
Transmittance over 83%	×	×	√	√
Temperature resistance 1200℃	×	×	×	√
Zero sample interference	×	×	×	√
High presion experiment	×	×	×	√
