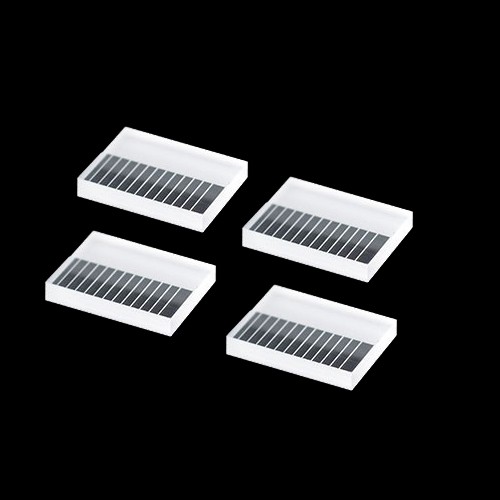

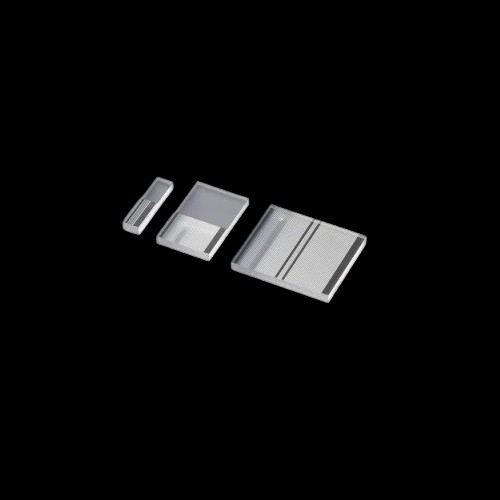

Custom Made Multiple Channels Fiber Opitc V Groove for Fiber Opitc Module

Category： Fiber Optics
INQUIRY EMAIL

Up to 180 V groove channel, cutting precision automation equipment, strong stability, 125, 250 microns in diameter of single-mode and multimode and polarization-maintaining fiber compatible, spacing of 0.5 microns, conform to the requirements of the Telcordia standards.

Specifications
Type	Material	Pitch	Single Pitcholerance(mm	Total PitchTolerance	Size
Type	Material	Pitch	Single Pitcholerance(mm	Total PitchTolerance	Length	Width	Height
2 CH	Quartz, Pyrex, Tempax	250um	(+/- 0.0005)	(+/-0.0005 )	10	2.5	1.5	Size can be customized according to customer's requirement
4 CH				(+/-0.0005 )	10	2.5	1.5
8 CH				(+/-0.0005 )	12	2.5	1.5
8 CH		127um		(+/-0.0005 )	12	2.5	1.5
16 CH				(+/-0.0007 )	12	3.5	1.5
32 CH				(+/-0.0008 )	12	5.7	1.5
64 CH				(+/-0.0008 )	12	9.8	1.5
96 CH				(+/-0.001 )	13.7	12	1.5
128 CH				(+/-0.0012 )	10	15	1.5

Features:
1.High accuracy Fiber Pitch Positions V-groove
2.High capacity using automated batch processing by Disco Dicing Machines3.Compatible with 125/250(or customzied fiber) micron diameter single mode, multimode and polarizationmaintaining fibers.
4.Low Insertion Loss and Low PDL

Advantages:

Our company has gathered the first-class team with more than ten years'experience in cutting industry whichcan accept the special requirements of customers and carry out customized production.All Japanese DlscO Cutting Equipment: DAD3350,DAD3430First-class quality control and clean operation workshop

Application: planar waveguide device, active device fiber array, multi-channel device construction.
