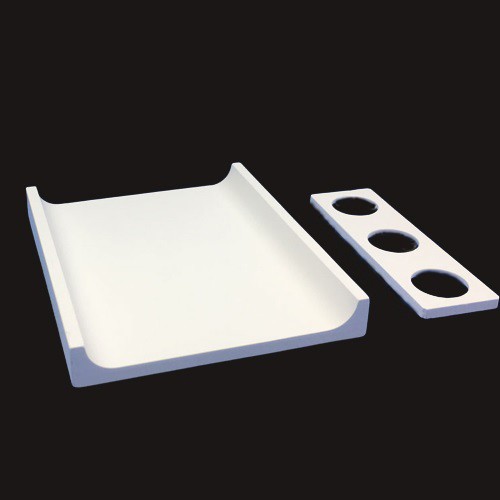

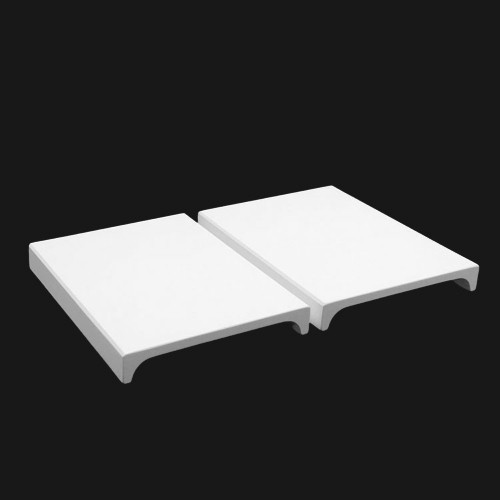

Ceramic Cavity Reflector and Cavity Flow Plates
Surface:Surface glazing, Un-glazing, strict tolerance.

Physical properties
 * Color: White
 * Bulk density (fired), Mg/m3 : 3.2
 * Porosity (apparent), % nominal: 20
 * Flexural strength (ASTM C1161, 3-point), MPa: 150
 * Thermal expansion coefficient 200-500C, 10-6/C: 7.9 200-1000C, 10-6/C:9.0

Main Features
1. Dimensional tolerance in height direction can achieve tolerance ≤1.0mm, other dimensional tolerances can reach ≤0.5mm
2. The surface is fully glazed to achieve maximum reflectivity and easy to clean
3. The reflectivity reaches 97% at the wavelength of 600-1000nm
4. The reflectivity exceeds 95% in the wavelength range of 380-1100nm
5. The body has proper porous and high strength characteristics

Application:
Cynosure Apogee Elite,
Cynosure Elite MPX
