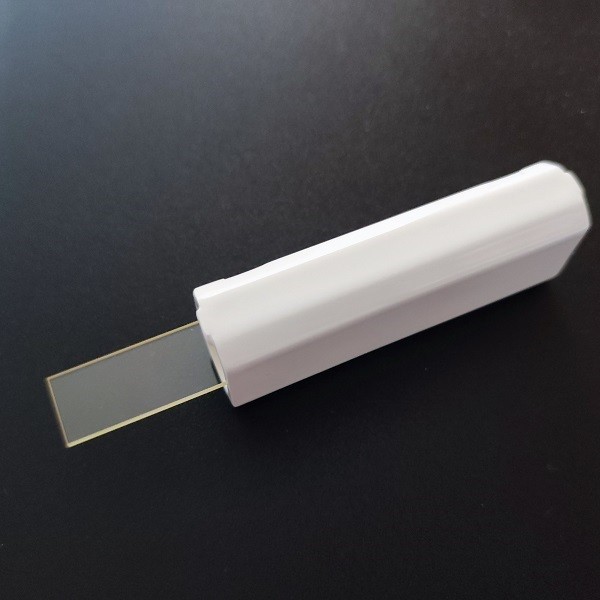

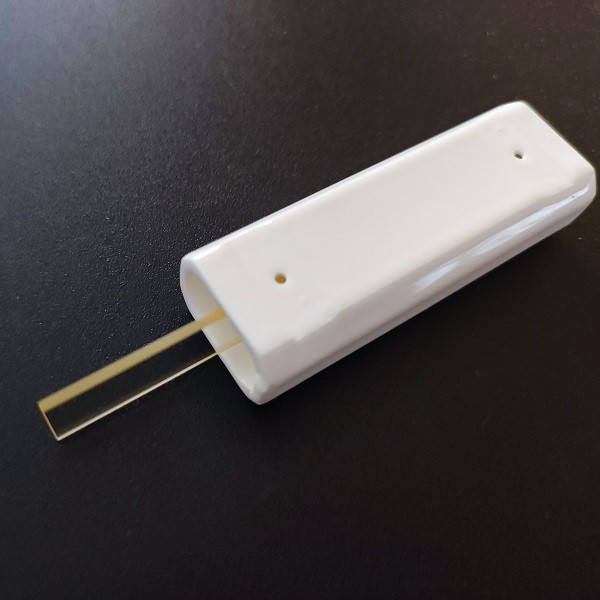

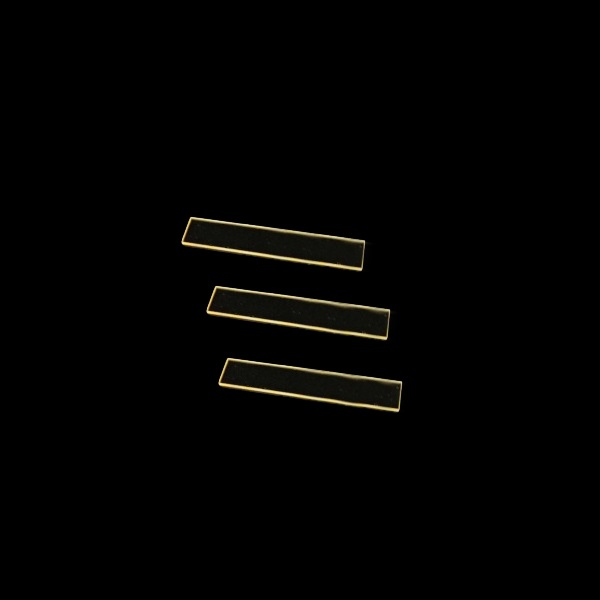

10% Samarium Doping Glass Plate for Laser Cavity Filter

Category： Flow Tubes and Flow plates
Material:10% Samarium Doped Glass
Size：Tailor-Made
Tolerance：±0.001 to ±0.5mm
Surface Quality :Fine ground or polished
INQUIRY EMAIL

Material:
10% Samarium-doped Filter Glass

Surface Quality:
Fine ground or polished

Applications:
The Samarium-doped Filter Glass Plate is used as a filter medium in laser cavities. It is designed to transmit ideal pumping bands while filtering out undesired UV radiation and parasitic lasing. This filter glass is crucial in enhancing beam amplification efficiently and protecting the laser medium from solarization and heat.

Advantages:
Chemical Strengthening and Acid Etching: Can undergo chemical strengthening and acid etching to increase resistance to breakage due to thermal shock.
UV and IR Protection: Protects the laser medium from harmful UV and IR light.
Parasitic Laser Radiation Absorption: Absorbs parasitic laser radiation to improve laser performance.
Customization: Available in completely customized designs to meet specific requirements.
Laser Efficiency: Enhances overall laser efficiency by maintaining optimal conditions within the laser cavity.

Product Features:

Material: 10% samarium-doped glass, renowned for its high refraction and low dispersion properties.
Surface Quality: Options for fine ground or polished surface quality.
Dimensions and Tolerances: Customizable dimensions with precise tolerances to fit specific laser cavity requirements.
Blocking Capability: Effective in blocking 1.06um wavelength and UV pump light, making it ideal for use with Nd
and other neodymium-doped lasing elements.
Applications: Widely used in medical/cosmetic lasers and other high-power laser applications.

For more details and inquiries, please contact our sales team. We offer customizable solutions to meet your specific needs.
